Description:

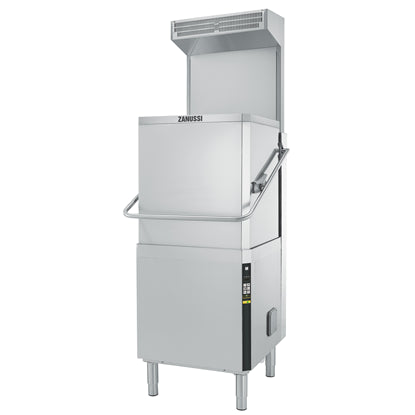

Hood type dishwasher, with double skin insulated manual hood, guaranteed rinse system (Active), energy saving device, automatic deliming device, advanced filtering system, rinse aid dispenser and drain pump, WRAS approved, 80r/h

Specifications:

Supply Voltage 400 V/3N ph/50 Hz
Max Electrical Power 12.9 kW
Shipping Weight 129 kg
Electric - Convertible to 230V 1N~; 230V 3~
Electric - Default Installed Power 9.9 kW
Electric - Boiler Heating Elements Power * 9 kW
Electric - Tank heating elements 3 kW
Water - Drain line size 20.5mm
Water - Inlet water supply pressure 0.5-7 bar
Water - Boiler Capacity (lt) 12
Water - Tank Capacity (lt) 24
Air Emission - Air Flow 170 m³/h
Air Emission - Air temperature 26 - 29 °C
Air Emission - Air humidity 55%
Air Emission * productivity guaranteed at any supply temperature allowed in the range above. To ensure full energy recovery, an extra 11 seconds is required.
Air Emission - Latent heat 350 W
Air Emission - Sensible heat 1490 W
Sustainability - Water supply temperature* 10-20 °C
Sustainability - Water consumption per cycle (lt)** 2
Sustainability - Noise level <63 dBA
Key Information - N° of cycles 3
Key Information - Duration cycle * 45/84/150 sec.
Key Information - Duration cycle - NSF/ANSI 3 compliant 57/84/150 sec.
Key Information - Racks per hour * 80
Key Information - Racks per hour - NSF/ANSI 3 compliant 63
Key Information - Dishes per hour * 1440
Key Information - Dishes per hour - NSF/ANSI 3 compliant 1134
Key Information - Wash temperature 55-65 °C
Key Information - Wash temperature - NSF/ANSI 3 compliant 75 °C
Key Information - Rinse temperature 84 °C
Key Information - Net weight 150 kg
Key Information - Shipping weight (ESD) 35 kg
Key Information - Shipping volume 1.23 m³
Key Information - Shipping volume (ESD) 0.33 m³
Key Information - Packaging size(WxDxH) 870x730x1620 mm
Key Information - Packaging size ESD (WxDxH) 730x930x480 mm
