Description:

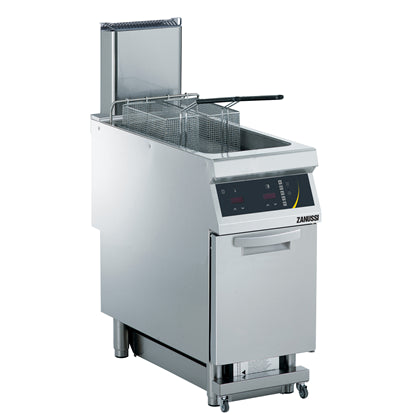

23-lt electric fryer with 1 "V" shaped well (external heating elements) and 2 half size baskets, time and temperature electronic control, oil recirculation pump, predisposed for advanced filtering system (optional accessory ) - hp - free standing
Specifications:
| Supply Voltage | 380-400 V/3N ph/50/60 Hz |
|---|---|
| Dimensions | 340 W x 575 D x 400 H |
| Shipping Weight | 92 kg |
| Electric - Total Watts | 18 kW |
| Key Information - Well capacity | 21 lt MIN; 23 lt MAX |
| Key Information - Performance* | 37.6 kg hr |
| Key Information - Thermostat Range | 110 °C MIN; 190 °C MAX |
| Key Information - Net weight | 86 kg |
| Key Information - Shipping volume | 0.64 m³ |
| Key Information - *Based on | ASTM F1361-Deep fat fryers |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
