Description:

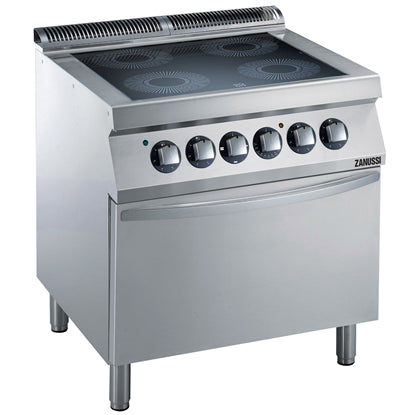

4-zone (2,2 kW each) infrared cooking range on electric oven (6 kW)
Specifications:
| Supply Voltage | 380-400 V/3N ph/50/60 Hz |
|---|---|
| Dimensions | 540 W x 650 D x 300 H |
| Shipping Weight | 96 kg |
| Electric - Total Watts | 14.8 kW |
| Electric - Predisposed for | 380-400V 3N~ 50/60Hz 13,6-14,8kW |
| Key Information - Front Plates Power | 2.2 - 2.2 kW |
| Key Information - Back Plates Power | 2.2 - 2.2 kW |
| Key Information - Front Plates dimensions | Ø 230 Ø 230 |
| Key Information - Back Plates dimensions | Ø 230 Ø 230 |
| Key Information - Oven working Temperature | 140 °C MIN; 300 °C MAX |
| Key Information - Net weight | 85 kg |
| Key Information - Shipping volume | 0.8 m³ |
