Description:

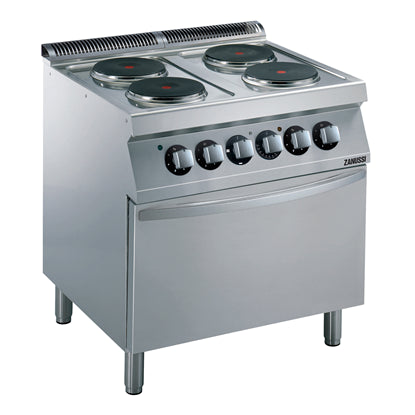

4-hot plate (2,6 kW each) electric range on electric oven (6 kW)
Specifications:
| Supply Voltage | 380-400 V/3 ph/50/60 Hz |
|---|---|
| Dimensions | 540 W x 650 D x 300 H |
| Shipping Weight | 93 kg |
| Electric - Total Watts | 16.4 kW |
| Key Information - Front Plates Power | 2.6 - 2.6 kW |
| Key Information - Back Plates Power | 2.6 - 2.6 kW |
| Key Information - Front Plates dimensions | Ø 230 Ø 230 |
| Key Information - Back Plates dimensions | Ø 230 Ø 230 |
| Key Information - Oven working Temperature | 100 °C MIN; 300 °C MAX |
| Key Information - Net weight | 80 kg |
| Key Information - Shipping volume | 0.76 m³ |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
