Description:

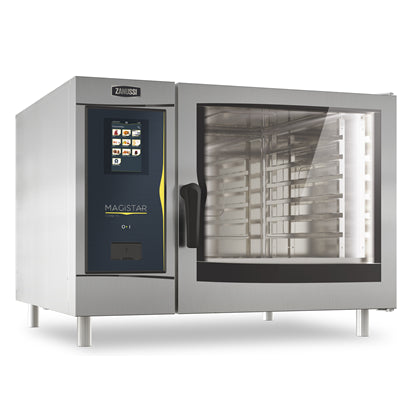

Magistar Combi TS combi boiler oven with touch screen control, 6x2/1GN, electric, 3 cooking modes (automatic, recipe program, manual), automatic cleaning, boiler in AISI304 (Australia)
Specifications:
| Supply Voltage | 400-430 V/3N ph/50-60 Hz |
|---|---|
| Dimensions | 1090 mmw x 971 mmd x 808 mmh |
| Default Electrical Power | 21.4 kW |
| Max Electrical Power | 22.3 kW |
| Clearance | Clearance: 5 cm rear and right hand sides. |
| Weight | 165.5 kg |
| Shipping Weight | 188.5 kg |
| Water Inlet Connection | 3/4" |
| Water Pressure | 1-6 bar |
| Capacity GN | 6 - 2/1 Gastronorm |
| Max Load Capacity | 60 kg |
Documents:
CAD Drawings
Data Sheet
BIM/Revit
